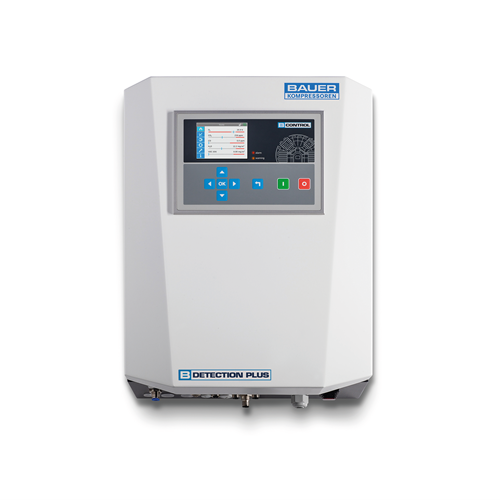

The B-DETECTION PLUS gas measuring system monitors the quality of the breathing air you produce: measurement of CO, CO2, O2 as standard as well as optional measurement of absolute humidity and residual oil (VOC1). Automatic, continuous and reliable.
The B-CONTROL control unit allows you to monitor compliance with the limit values of breathing air standard DIN EN 12021:20141 at all times. If a limit value is exceeded, the control unit displays a visual warning message and, as an option, shuts down the unit before contaminated air can pass into the cylinders being filled.
An automatic flushing valve ensures that in cases where limit values are only exceeded briefly, the contaminated air is discharged into the open without having to interrupt the operation of the unit.
With the new generation B-DETECTION PLUS, you can test not only the ambient air but, if desired, also measure the quality of the breathing air in the cylinder itself as well as in the intake hose.
1 Humidity and oil measurement (VOC) optional. Oil measurement only on the basis of volatile hydrocarbons (VOCs). Sensor calibration based on isobutene.
